Growatt MOD 15KTL3-X Competitive Price Solar Inverter 15kw Three Phase on Grid 2 MPPT WIFI Inverter in Stock in Europe

Name: Growatt MOD 15KTL3X Competitive Price Solar Inverter 15kw Three Phase on Grid 2 MPPT WIFI Inverter in Stock in Europe
Brand: Growatt
Price: 630 USD

Buy cheap Growatt MOD 15KTL3-X Competitive Price Solar Inverter 15kw Three Phase on Grid 2 MPPT WIFI Inverter in Stock in Europe product

Place of Origin : Anhui, China

Model Number : MOD 15KTL3-X

Brand Name : Growatt

Input Voltage : 1100V

Output Voltage : 220V/380V, 230V/400V (340-440V)

Output Current : 25A

Output Frequency : 50/60 Hz (45-55Hz/55-65 Hz)

Output Type : Three Phase

Size : 425/387/178mm

Type : DC/AC Inverters

Inverter Efficiency : 98.6%

Weight : 14kg

Start voltage : 160V

Nominal voltage : 580V

MPPT voltage range : 140V-1000V

Adjustable power factor : 0.8leading...0.8lagging

THDi : <3%

AC grid connection type : 3W+N+PE

Operating temperature range : -25°C ... +60°C

Nighttime power consumption : < 1W

Topology : Transformerless

Cooling : Natural convection

MOQ : 1 piece

Price : $630-700 / piece

Contact Now

Products Description

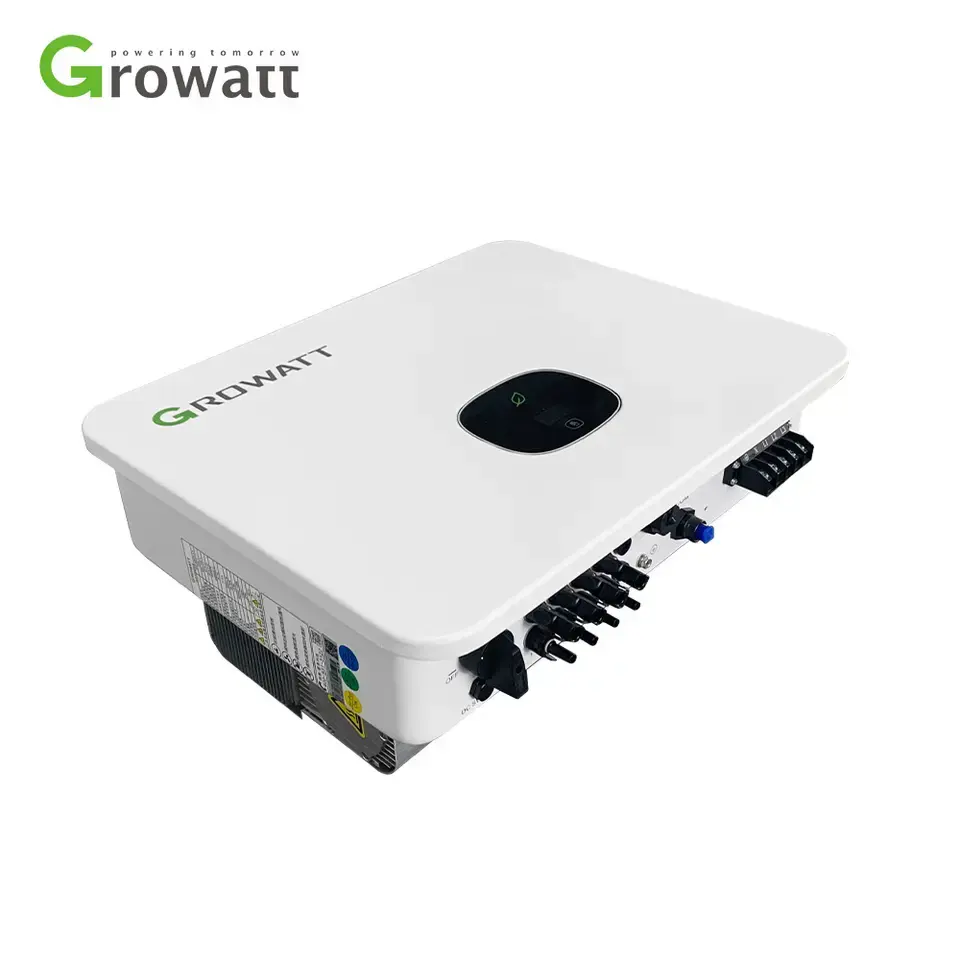

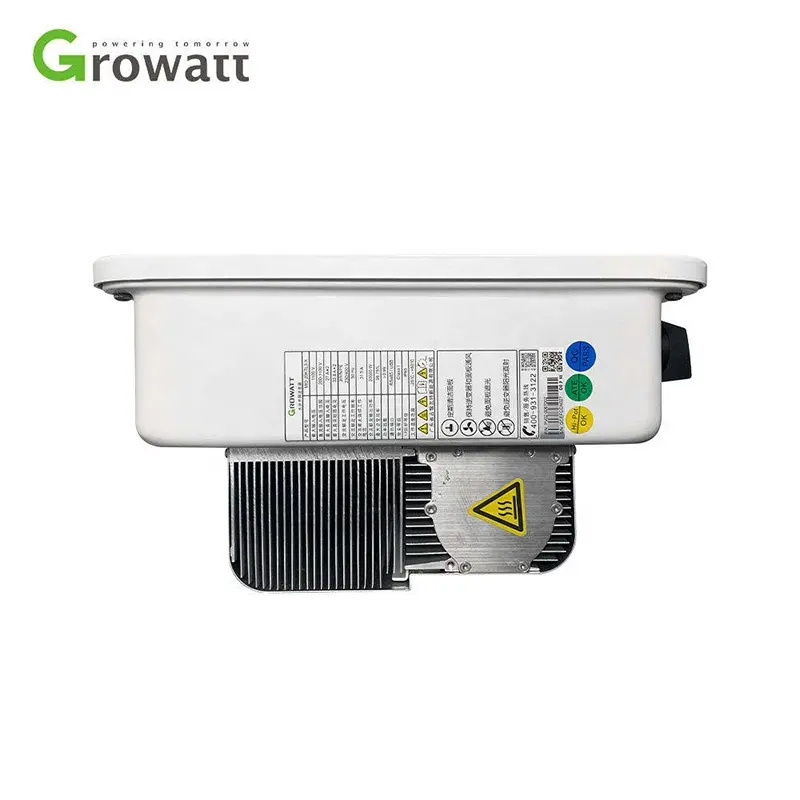

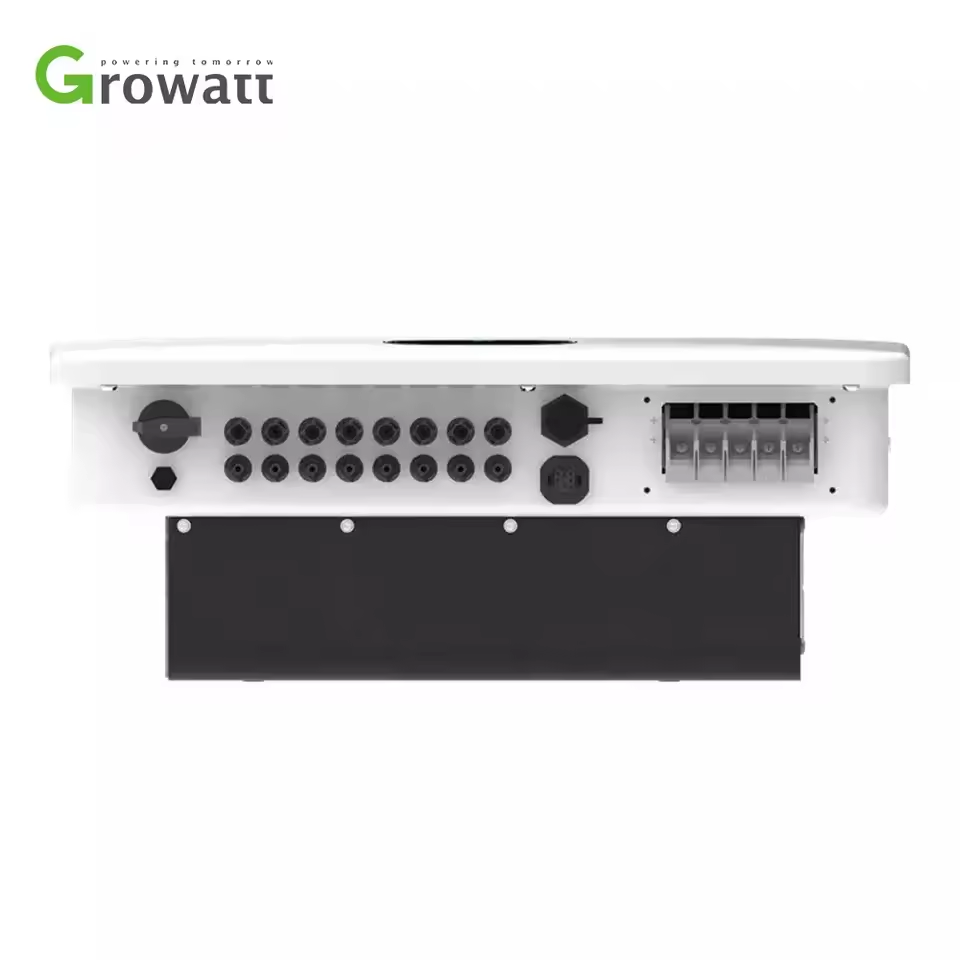

MOD 15KTL3-X

* Max. efficiency 98.6%

* OLED and Touch button

* Type II SPD on DC and AC side

* String Monitoring

* AFCI optional

Product Paramenters

Datasheet	MOD 15KTL3-X
Input data (DC)
Max. recommended PV power (for module STC)	22500W
Max. DC voltage	1100V
Start voltage	160V
Nominal voltage	580V
MPPT voltage range	140V-1000V
No. of MPP trackers	2
No. of PV strings per MPP tracker	1/2
Max. input current per MPP tracker	13/26A
Max. short-circuit current per MPP tracker	16/32A
Output data (AC)
AC nominal power	15000W
Max. AC apparent power	16500VA
Nominal AC voltage(range*)	220V/380V, 230V/400V (340-440V)
AC grid frequency(range*)	50/60 Hz (45-55Hz/55-65 Hz)
Max. output current	25A
Adjustable power factor	0.8leading…0.8lagging
THDi	<3%
AC grid connection type	3W+N+PE
Efficiency
MAX. efficiency	98.6%
European efficiency	98.2%
MPPT efficiency	99.9%
General data
Dimensions (W / H / D)	425/387/178mm
Weight	16kg
Operating temperature range	–25°C ... +60°C
Nighttime power consumption	< 1W
Topology	Transformerless
Cooling	Natural convection
Protection degree	IP66
Relative humidity	0~100%
Altitude	4000m
DC connection	H4/MC4(Optional)
AC connection	Connector
Display	OLED+LED/WIFI+APP
Interfaces: USB/RS485/WIFI /GPRS//LAN/RF	yes/yes/Optional/Optional/Optional/Optional
Warranty: 5 / 10 years	Yes/Optional
CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, TOR Erzeuger G98/G99, G100, AS4777, UNE217001, UNE206007, PO12.2
* For Belgium C10/C11, MOD 10KTL3-X max. output power is limit to 10000VA. * The AC voltage range and frequency range may vary depending on specific country grid standard. All specifications are subject to change without notice.

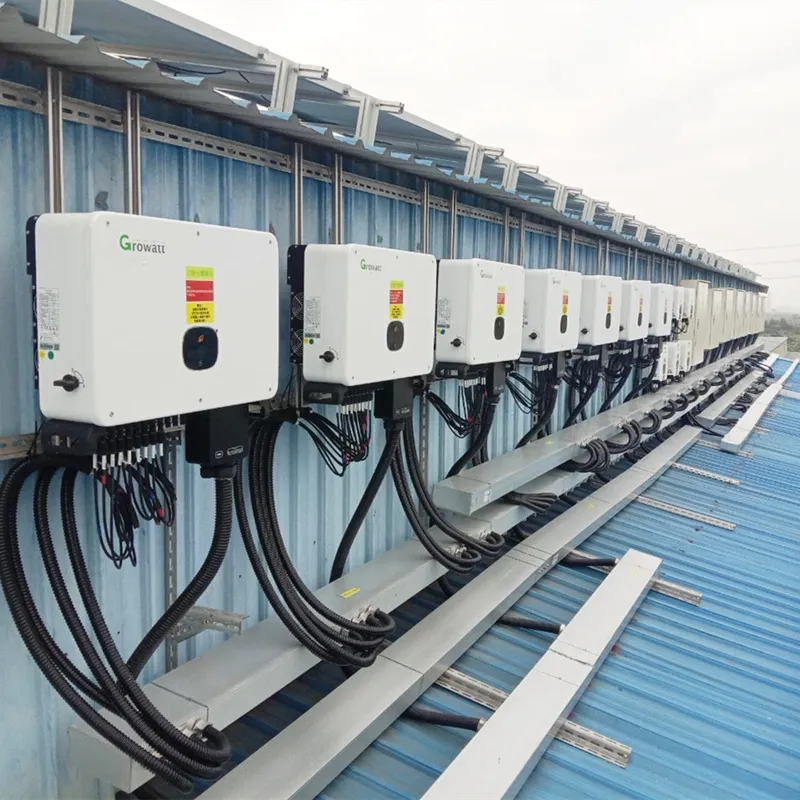

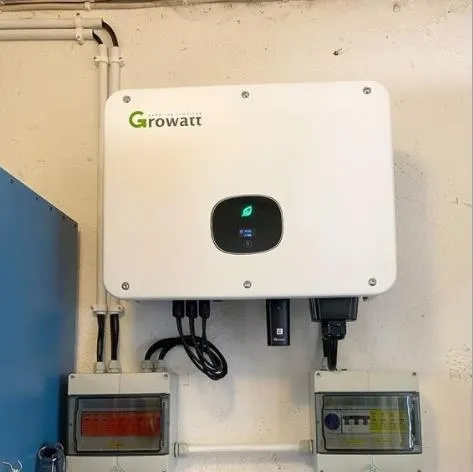

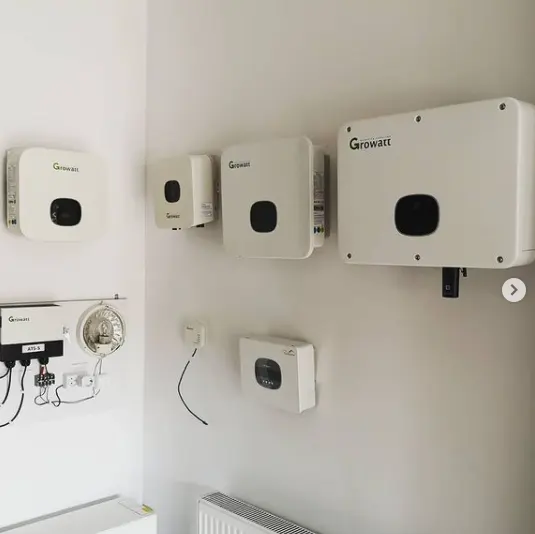

Project Case

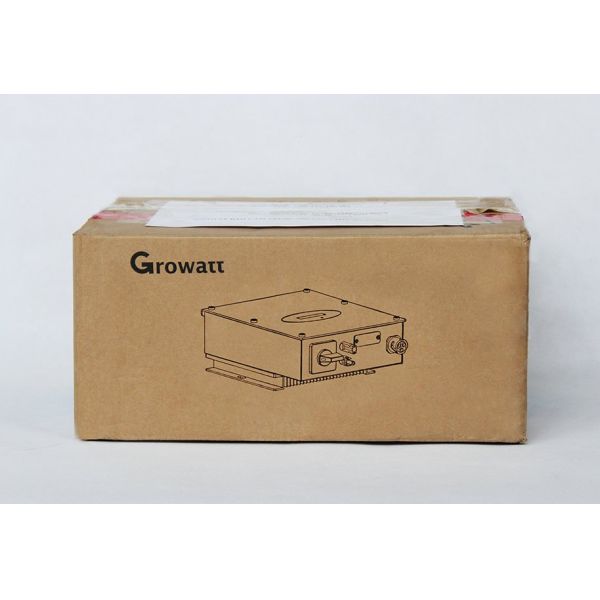

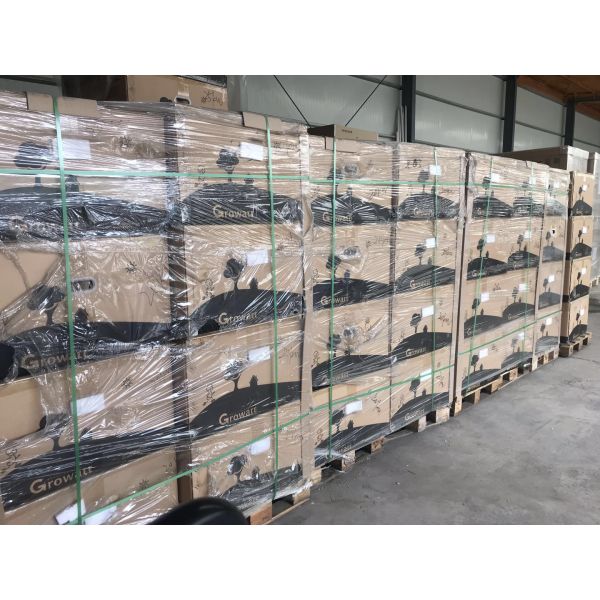

Packing & Delivery

Exhibition

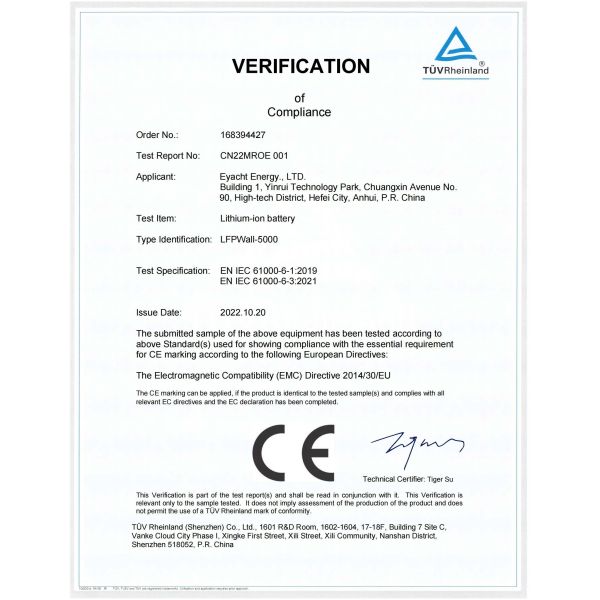

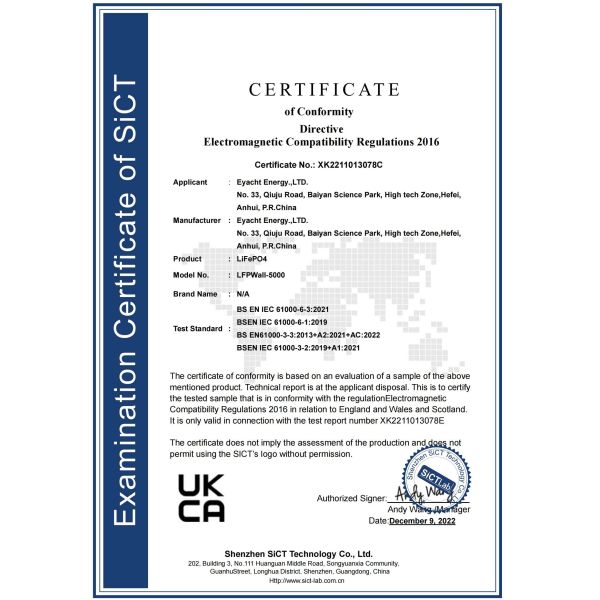

Certificate

Recommend Products

FAQ

1. who are we?
We are based in Anhui, China, start from 2018,sell to Northern Europe(10.00%),Eastern Europe(10.00%),Western Europe(8.00%),South America(8.00%),Central America(8.00%),Southern Europe(8.00%),Mid East(8.00%),North America(8.00%),Domestic Market(8.00%),Africa(6.00%),Eastern Asia(5.00%),Oceania(5.00%),Southeast Asia(5.00%),South Asia(3.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
photovoltaic product,solar panel,solar inverter,energy storage system,wind turbine

4. why should you buy from us not from other suppliers?
New energy integrated company, more than 10 years experience in PV industry, having complete supply chain for solar modules, inverters and energy storagy products. Also, provide the whole system design, development and implementation.

5. what services can we provide?
Accepted Delivery Terms: null;
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
